Gas Content

In the field at the client's well site, CGT offers state-of-the-art Gas Content Measurement of coal seams and shales, with techniques for handling conventional core, pressure core, sidewall core, and drill cuttings. All work is performed according to the client’s specifications and normally involves the use of temperature-controlled gas desorption canisters. Some of the services include:

  • CBM/Shale Gas Desorption based on ASTM Method D7569-10
  • Gas Content for Whole Conventional Core, Diamond Drill Core or Wireline Core
  • Specialized Cuttings Handling Methods with Proved, Accurate Results
  • 0.3 m and 0.5 m Diameter, Epoxy-Lined, Temperature-Controlled Desorption Canisters
  • Three Modes, including

> Quick-Degas for Ultra-Fast Turnaround (~1 week)
> Fast-Turnaround Degas (~1 month)
> Standard Long-Term Desorption (3 months or more)

  • Highly Accurate Residual Gas Measurement (Sealed Blender or Shatterbox)
  • Advanced Mathematical Analysis (including Spherical Diffusion Analysis when required)
  • Gas Composition Analysis by Gas Chromatography

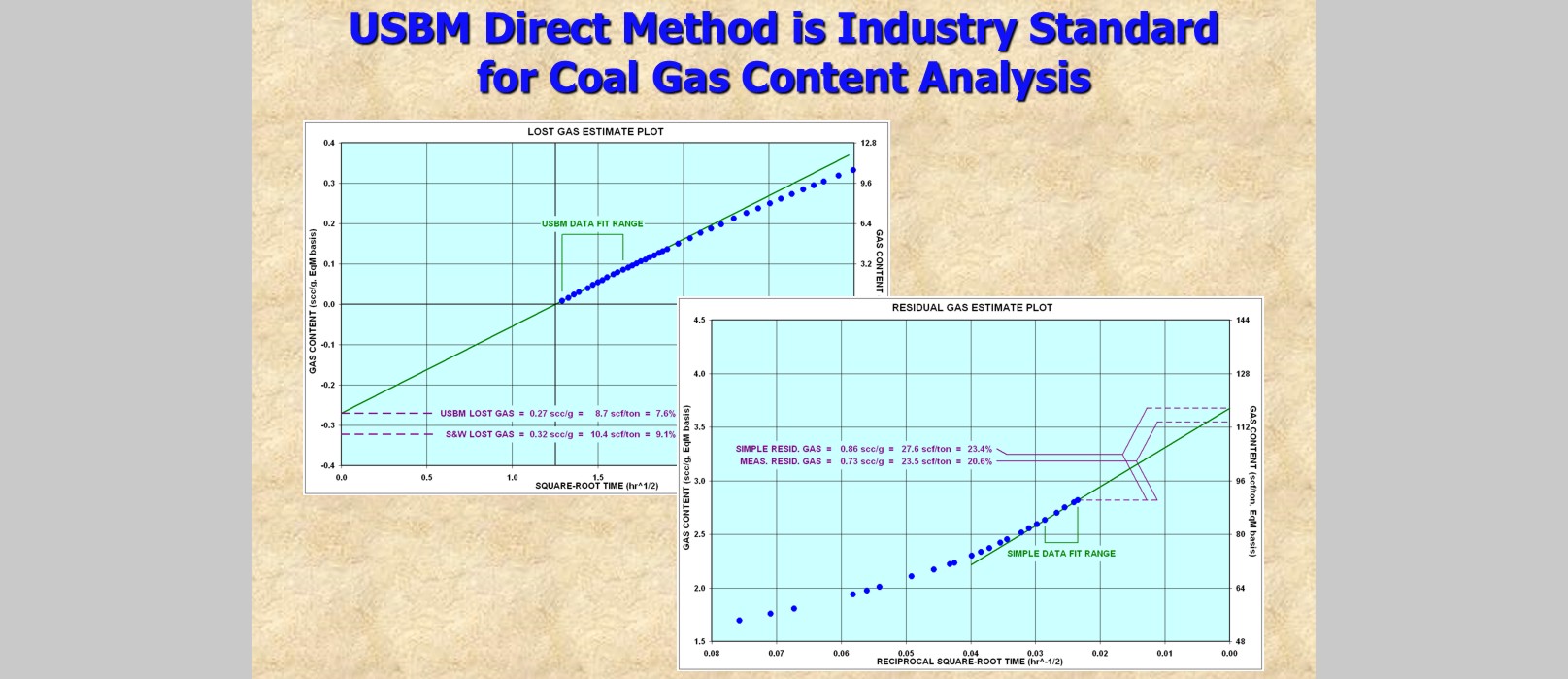

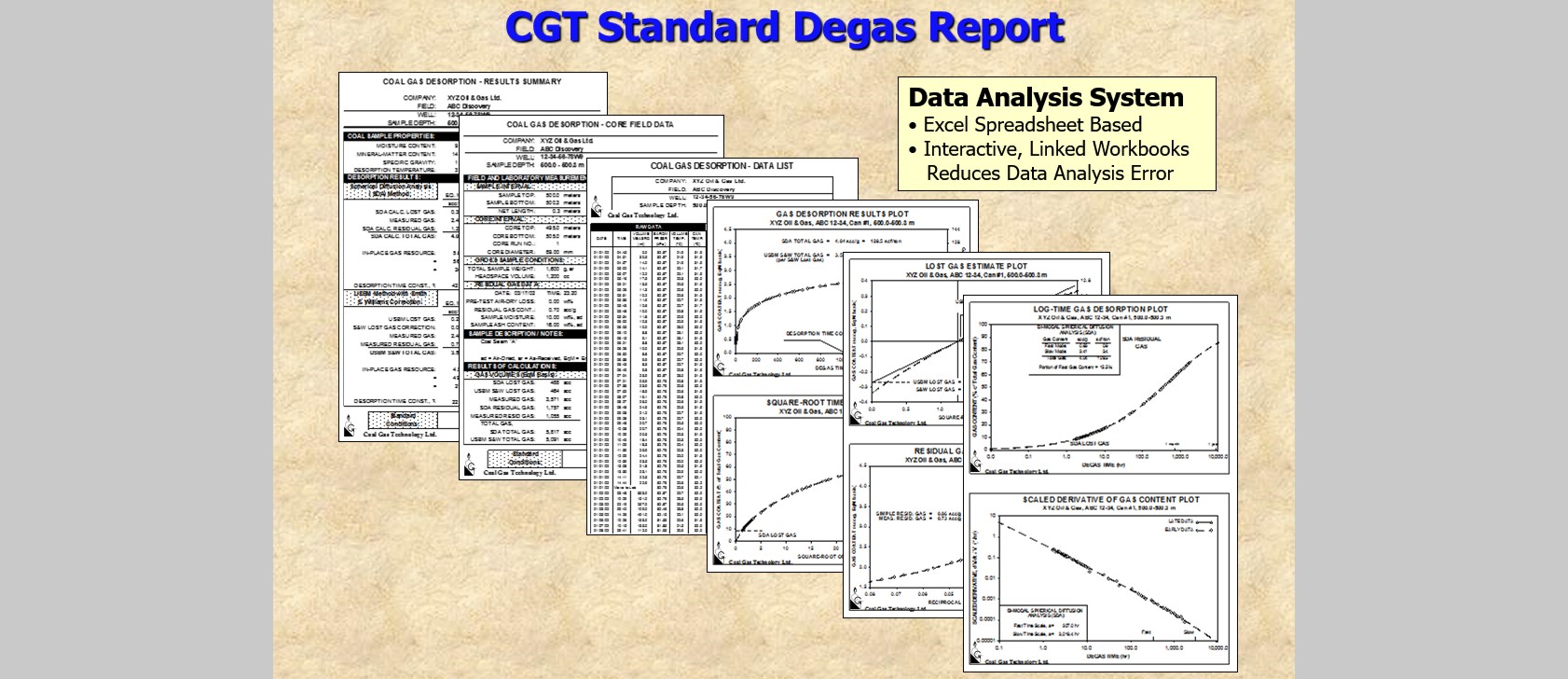

CGT analyzes degas results with both the standard USBM Direct Method and a new sophisticated technique called Spherical Diffusion Analysis (SDA). Comprehensive reports of gas content results and data curves are presented for each sample.

  • slide

    Drill Rig in

    Southern Alberta,

    Canada with

    Coring Operation

  • slide

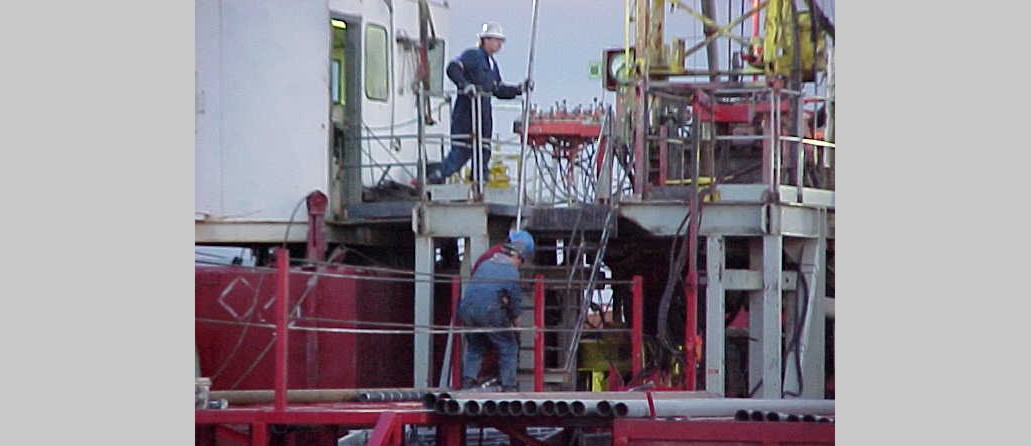

    Core Barrel Handling

    on Rig Floor

  • slide

    Drill Rig in Alabama

    Performing

    Pressure Coring

  • slide

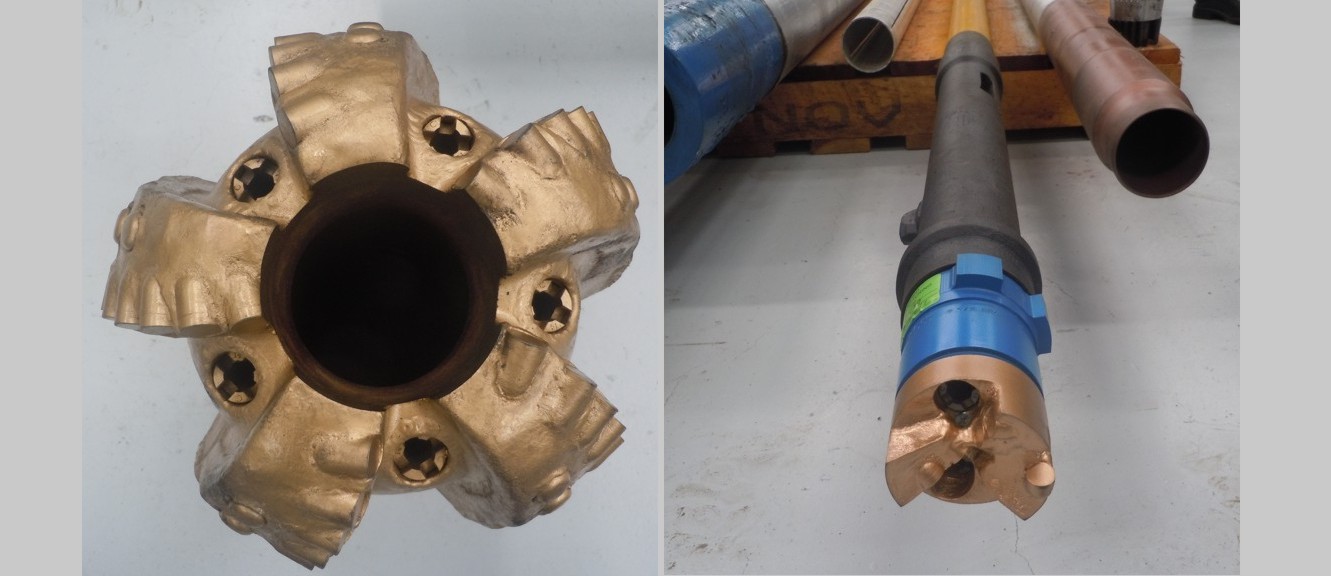

    Modern Core Bit with

    Bit Insert or

    Core Barrel Insert

  • slide

    Wireline Coring Operation

    in Central Alberta for

    Horseshoe Canyon Coals

  • slide

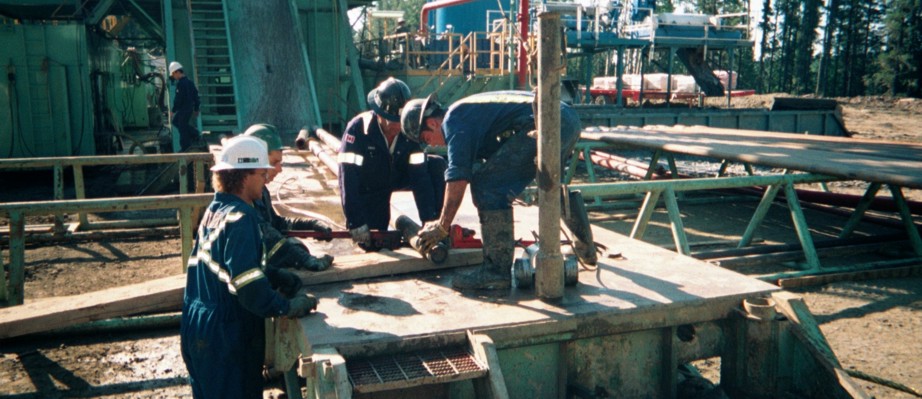

    Handling

    Core Barrel

    on Catwalk

  • slide

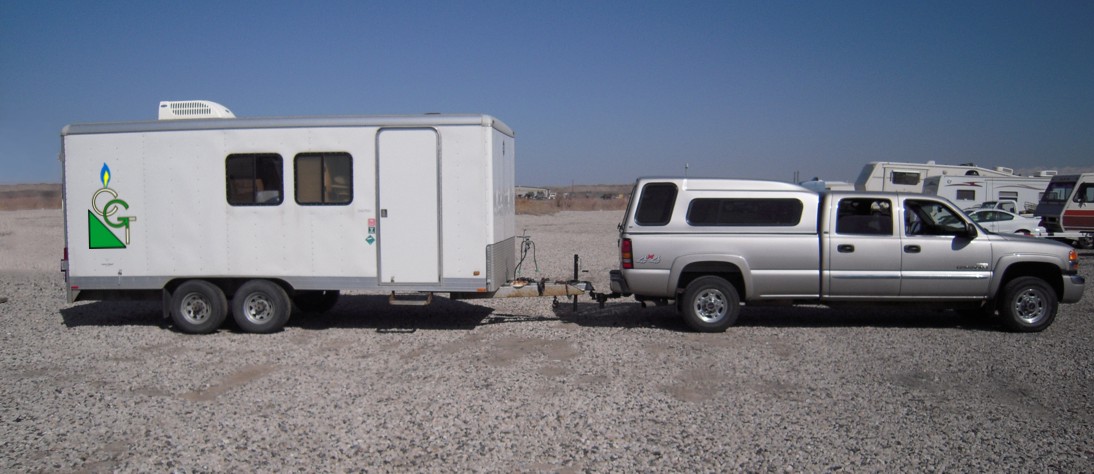

    CGT Degas Trailer

    for Field Mobilization

  • slide

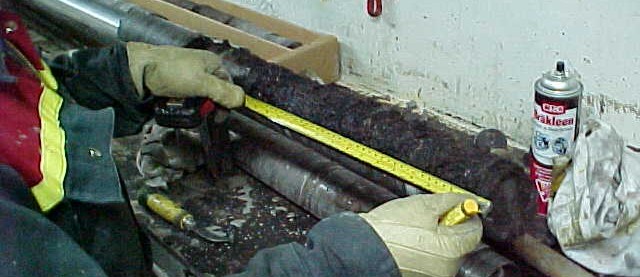

    Core Inspection

    in the Field

    Prior to Gas

    Content

    Measurement

  • slide
  • slide

    Balanced Burette

    Gas Volume

    Measurement

  • slide
  • slide

    Triple-Tube 1-meter Canisters

    with Temperature Control

  • slide

    Sidewall Core

    Mini Canisters

  • slide

    Triple-Burette

    Station for Range

    of Gas Volumes

  • slide

    Wall Box for Temperature Control of More than 100 Canisters

  • slide

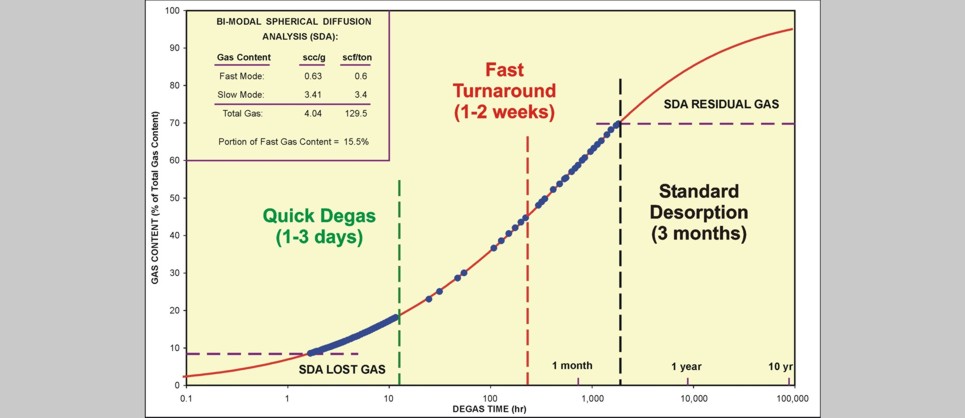

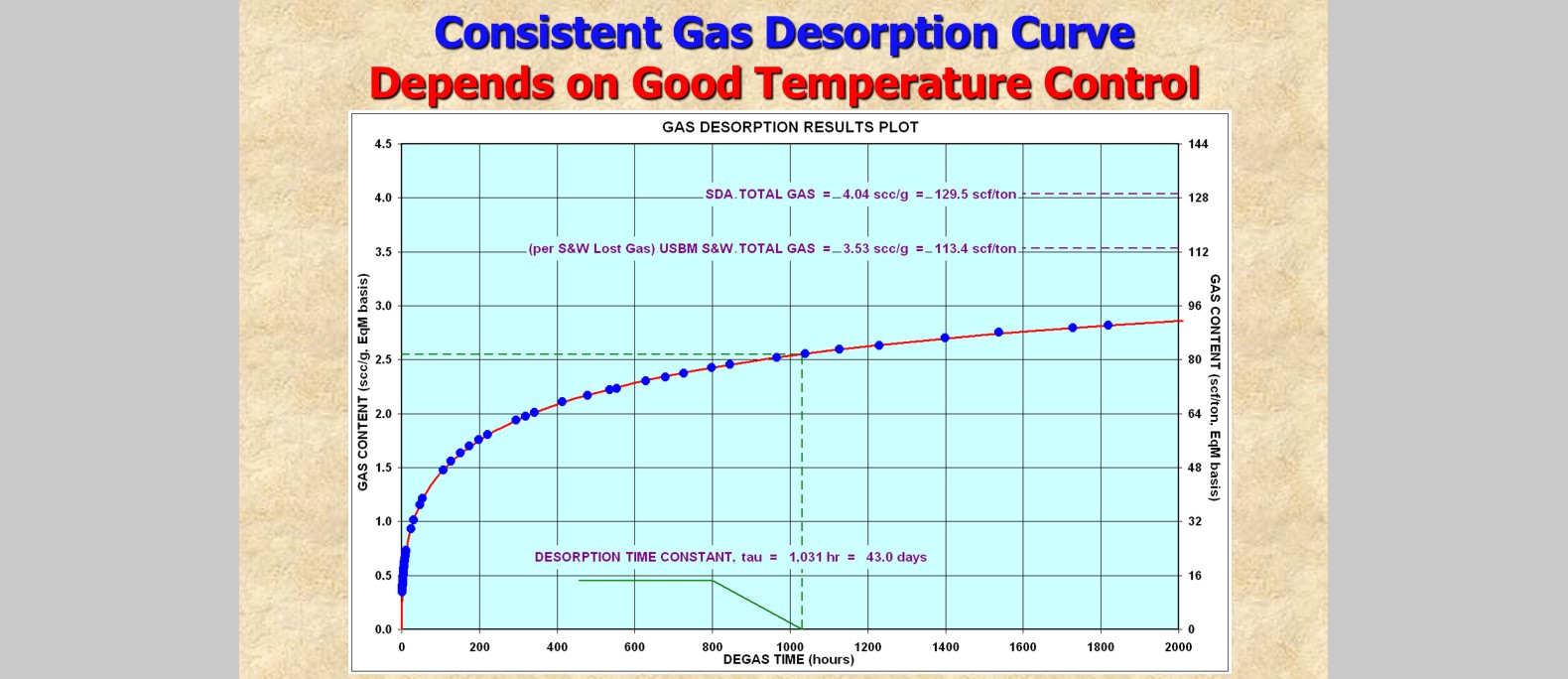

    Gas Desorption

    Test Duration

  • slide

    Simple 1-foot

    Canisters in

    Temperature-

    Controlled

    Box

  • slide

    HotBox Gas Desorption

  • slide

    Bulk Temperature Control of Canisters

  • slide

    Sealed Blender Jar for

    Coal Residual Gas Measurement

  • slide

    Sealed Puck Mill for

    Residual Gas Measurement

    of Coal or Shale

  • slide

    Sealed Ring Mill with

    Shatterbox for

    Residual Gas

    Measurement of

    Any Material

  • slide

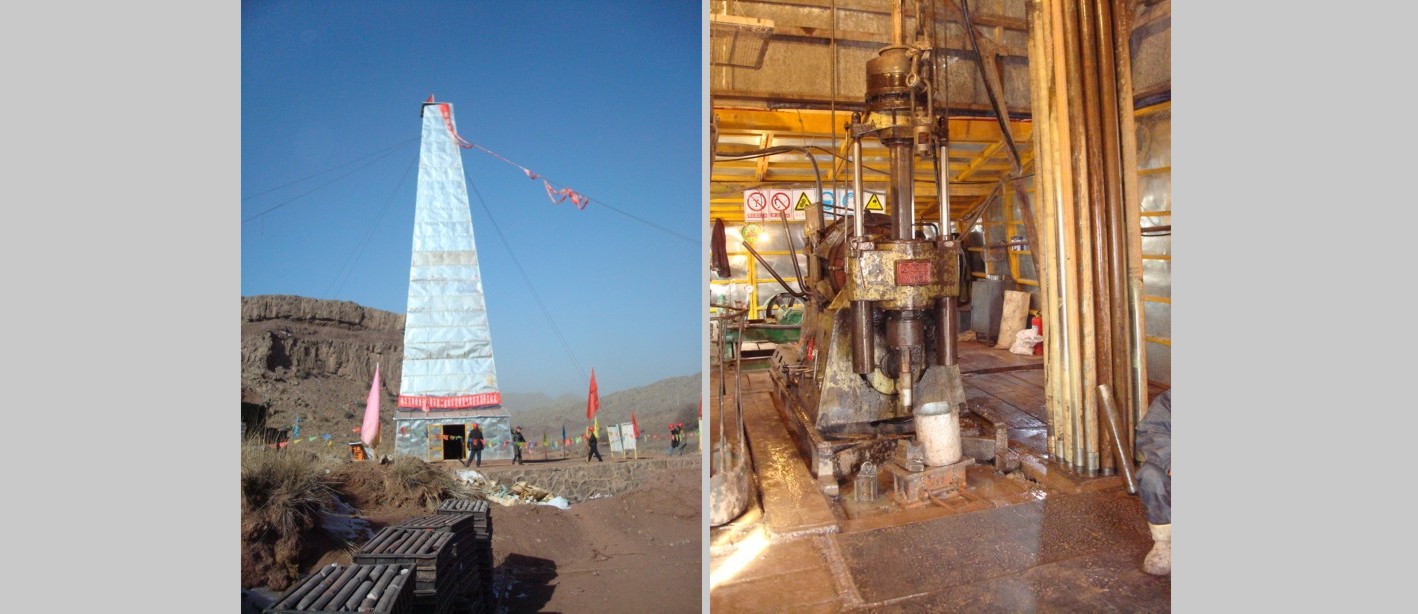

    Diamond Core Rig

    in Ningxia, China

  • slide
  • slide
  • slide

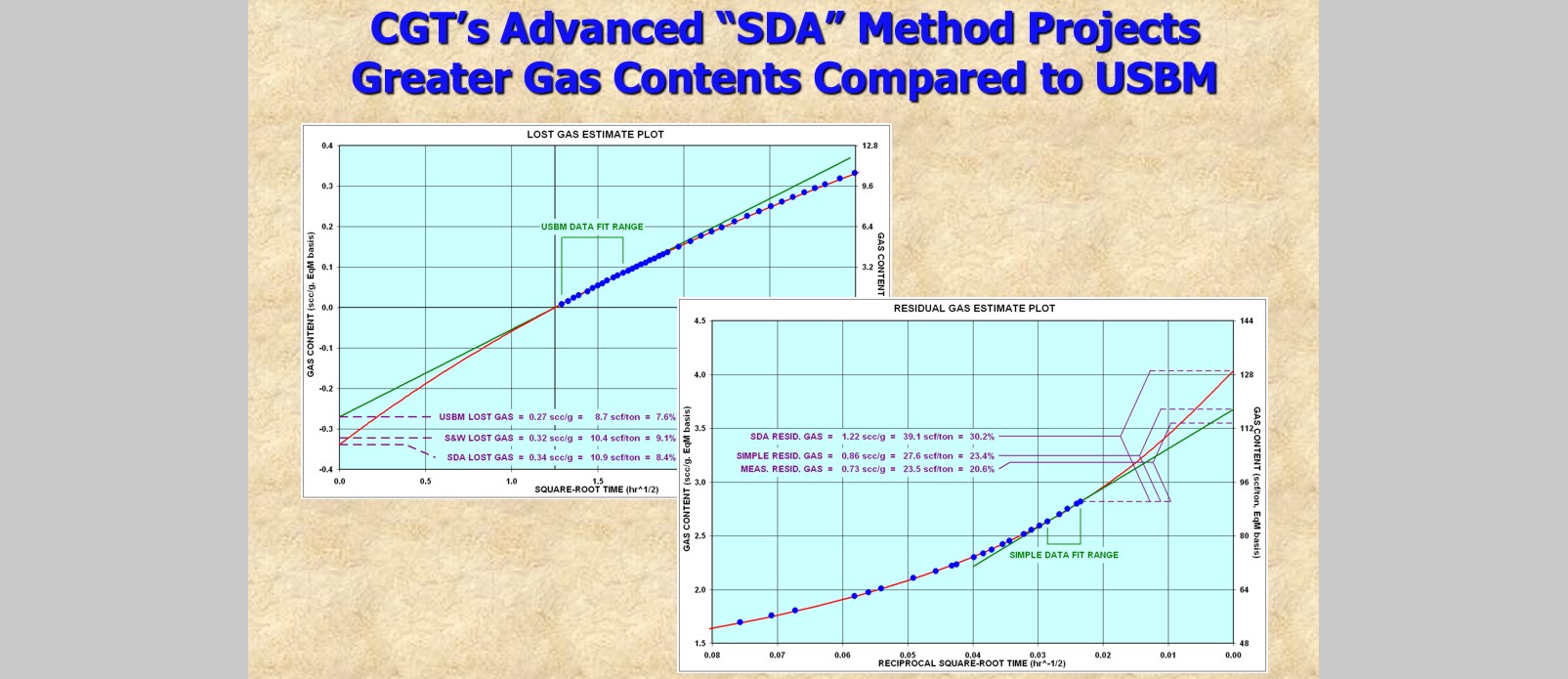

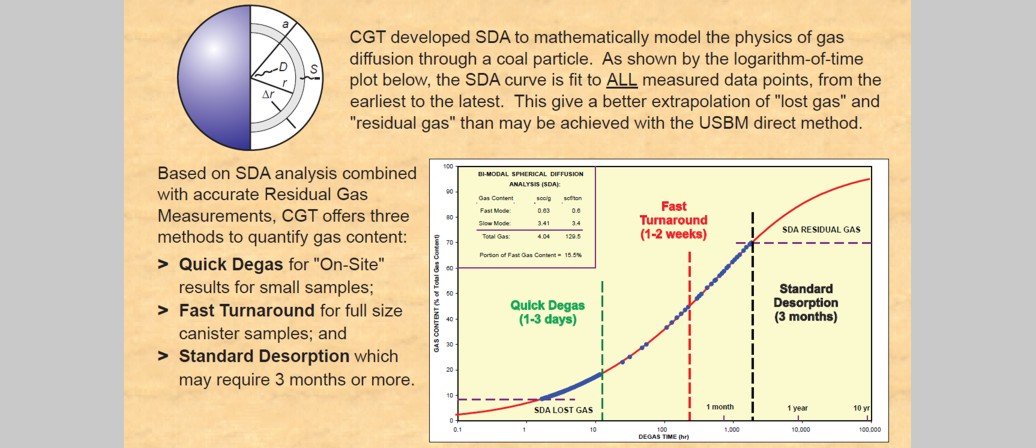

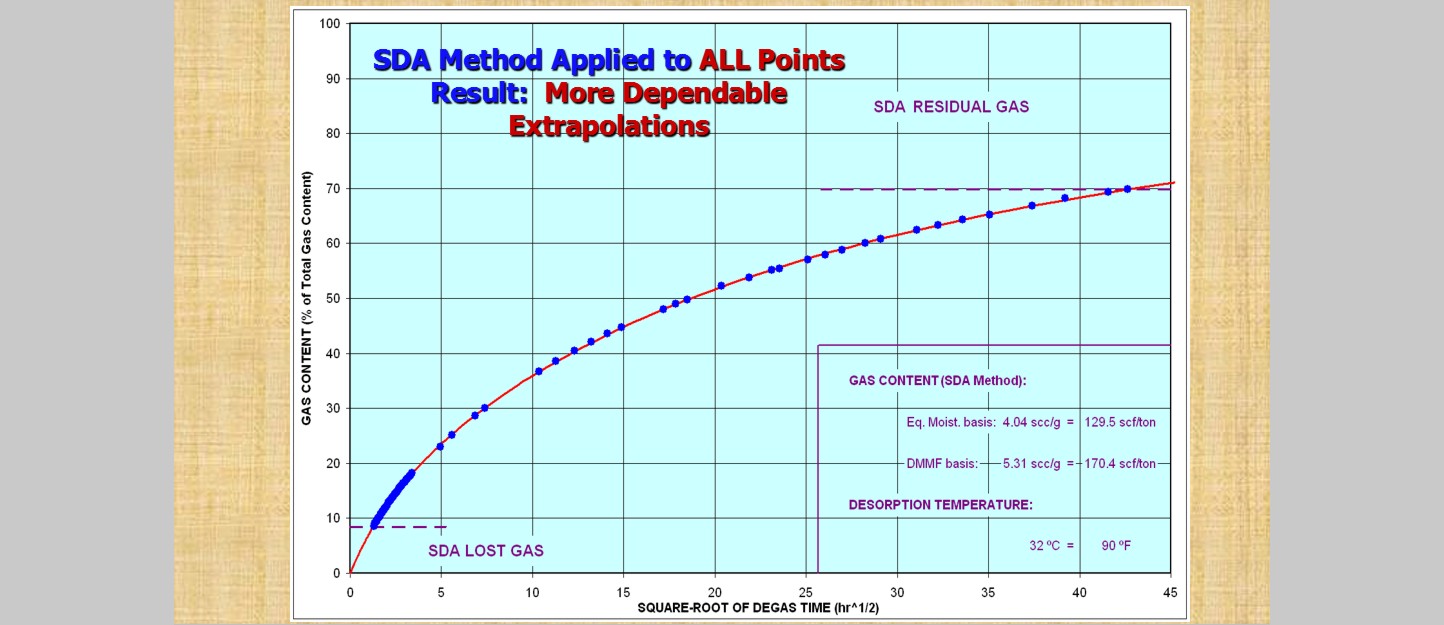

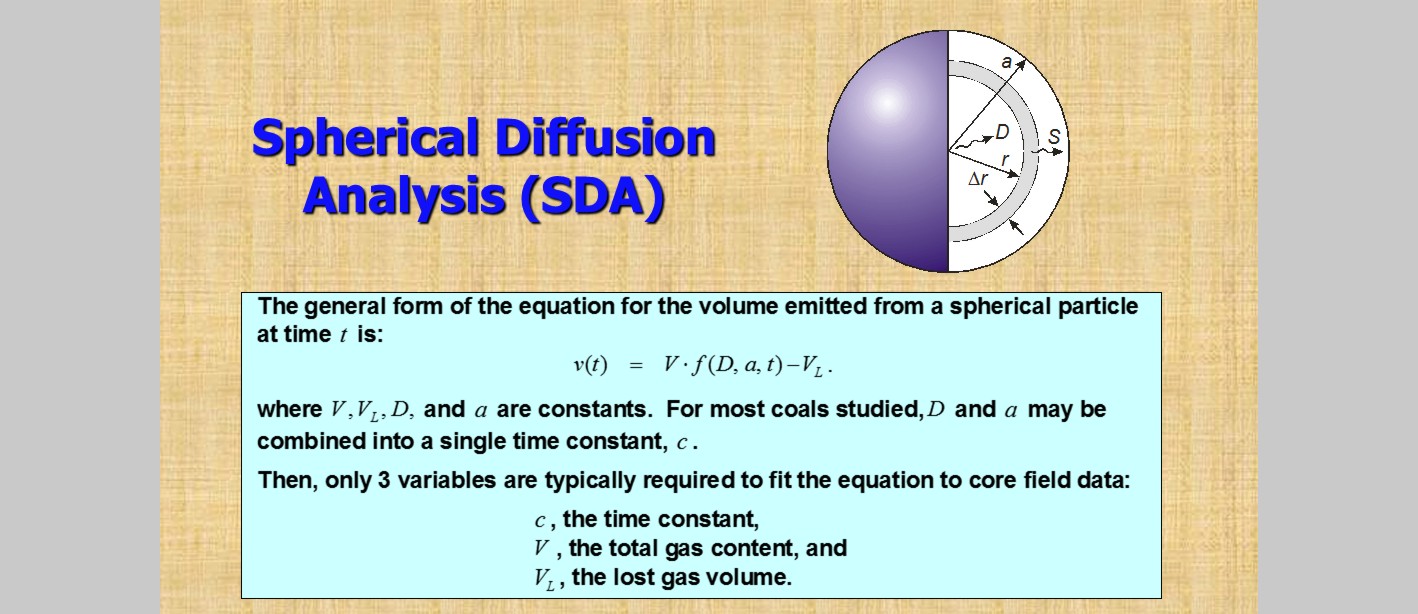

    Use of SDA

  • slide
  • slide
  • slide
  • slide
  • slide
