Reservoir Testing

Reservoir permeability is often just as important as coal thickness and gas content. CGT offers state-of-the-art Reservoir Transient Testing of coals and shales, with techniques based on specific needs of the exploration program, including:

  • Drill Stem Testing (openhole during drilling);
  • Injection/Falloff Testing (openhole or cased hole);
  • Interference Testing (multi-well test for directional perm. & compressibility).
  • Long-Term Production/Shut-In Testing (on stimulated or unstimulated wells)

CGT owns all the equipment needed for conducting Injection/Falloff tests in water-saturated wells. This hydrology equipment includes:

  • Inflatable Packers for straddling zones with diameters up to 11” (280 mm);
  • Low-Rate, High-Pressure Injection Pump with rates from 0.1 to 10 lpm;
  • Downhole, Surface-Readout Pressure Gauge with automatic data logging.

Acquired data is analyzed with state-of-the-art software for modern derivative analysis or based on classical methods.

  • slide

    Injection/Falloff Flow

    Test with Bottomhole

    Shut-In and

    Surface Readout

  • slide

    CGT Reservoir Testing Trailer

  • slide

    Multi-Zone Gas

    Flow Test

    Wellhead Setup

  • slide

    High-Pressure,

    Low-Rate

    Injection Pump

  • slide

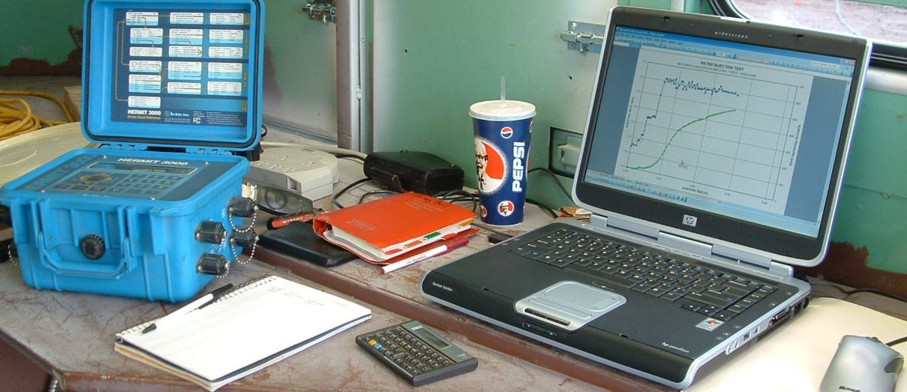

    Reservoir

    Testing Data

    Acquisition

    Equipment

  • slide

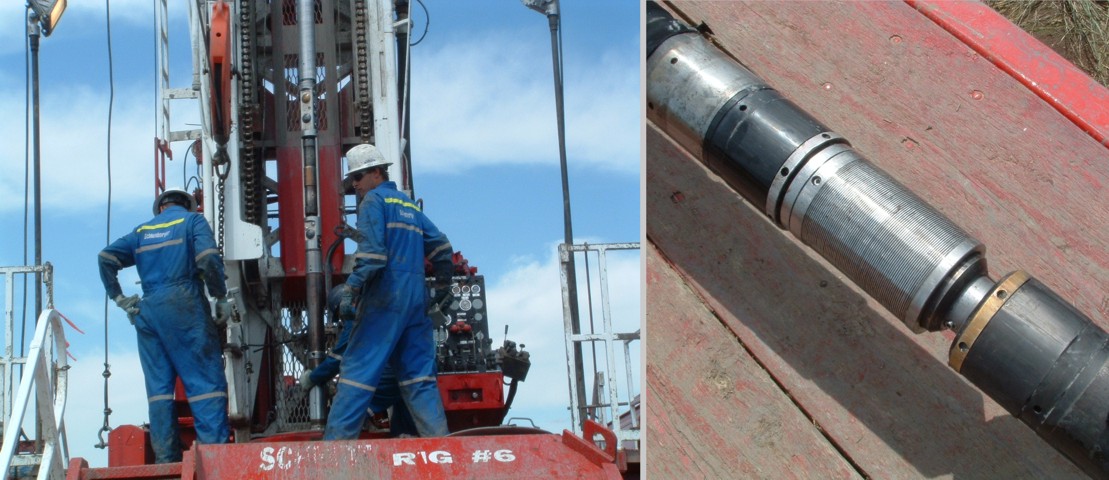

    Modular Formation Dynamic

    Tester (MDT) Tool for Wireline

    Permeability Testing

  • slide




    Gas Flow Test with Flare

  • slide

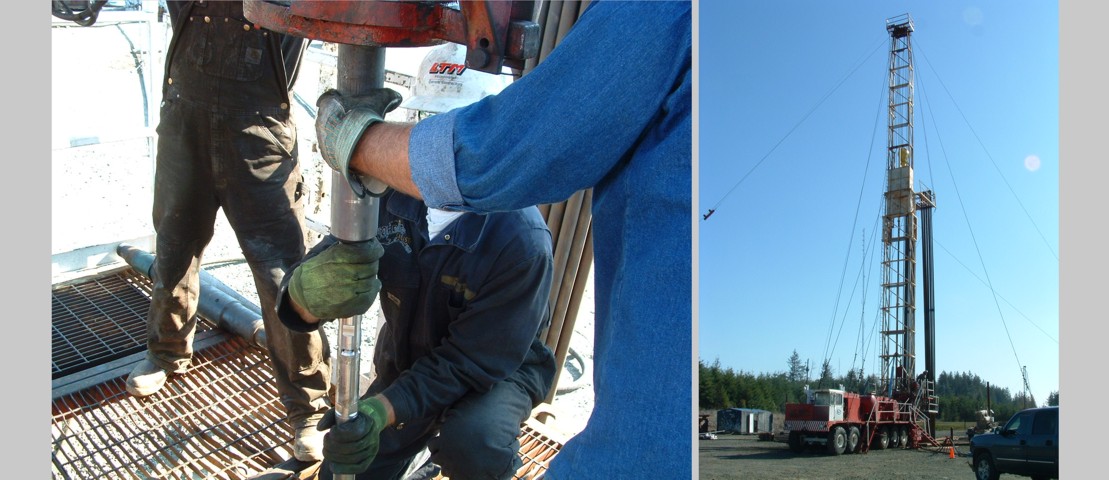

    Programmable

    Downhole

    Shut-In Tool

    Hung on Tubing

  • slide

    Coil Rig Saturation Test

    in Coos Bay, Oregon

  • slide

    Nitrogen Fog in Coos Bay, OR

  • slide

    Remote Location

    Reservoir Test with

    Diamond Drill Rig

  • slide

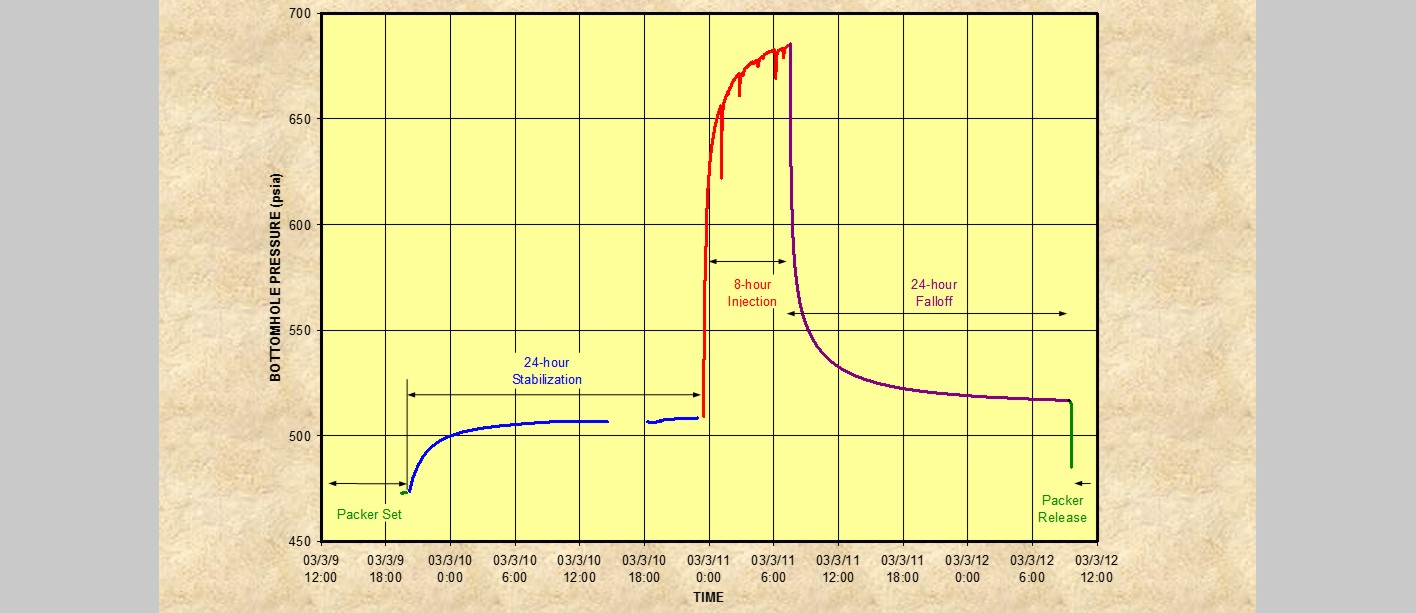

    Example of

    Pressure Stabilization,

    Injection and Fall-Off

    Data Collection Periods

  • slide

    Production Setup in Coos Bay, Oregon

  • slide

    Production Setup in Australia

  • slide

    Gas Flare During Flow Test
